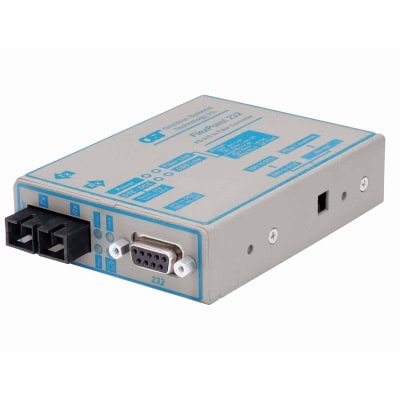

RS-232 Serial to Fiber Media Converter

| |

FlexPoint® 232: RS232 DB-9 to Fiber, SC, Multimode Dual Fiber, 1310nm, 2.5km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	FlexPoint 232 Asynchronous RS-232 to Fiber Media Converter
Data Rates	Up to 115,200 baud
Standard Compliances	EIA / TIA 232C/D/E
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Types	Copper: Fiber:	RS-232 (DB-9 Female) Proprietary (ST, SC, LC)
Cable Types	Copper: Fiber:	DB9 serial RS232 cable (50 ft./15.2m) Multimode: 62.5/125µm, 100/140µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.05A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Barrel Connector 6.0 to 15.0VDC 9VDC 0.5A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.6A @ 5VDC
Dimensions W x D x H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	w/o AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Storage:	0 to 50°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	w/o AC Adapter (-0): w/ AC Adapter (-1): w/ AC Adapter (-2):	850,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

Part Number: 4480-2
