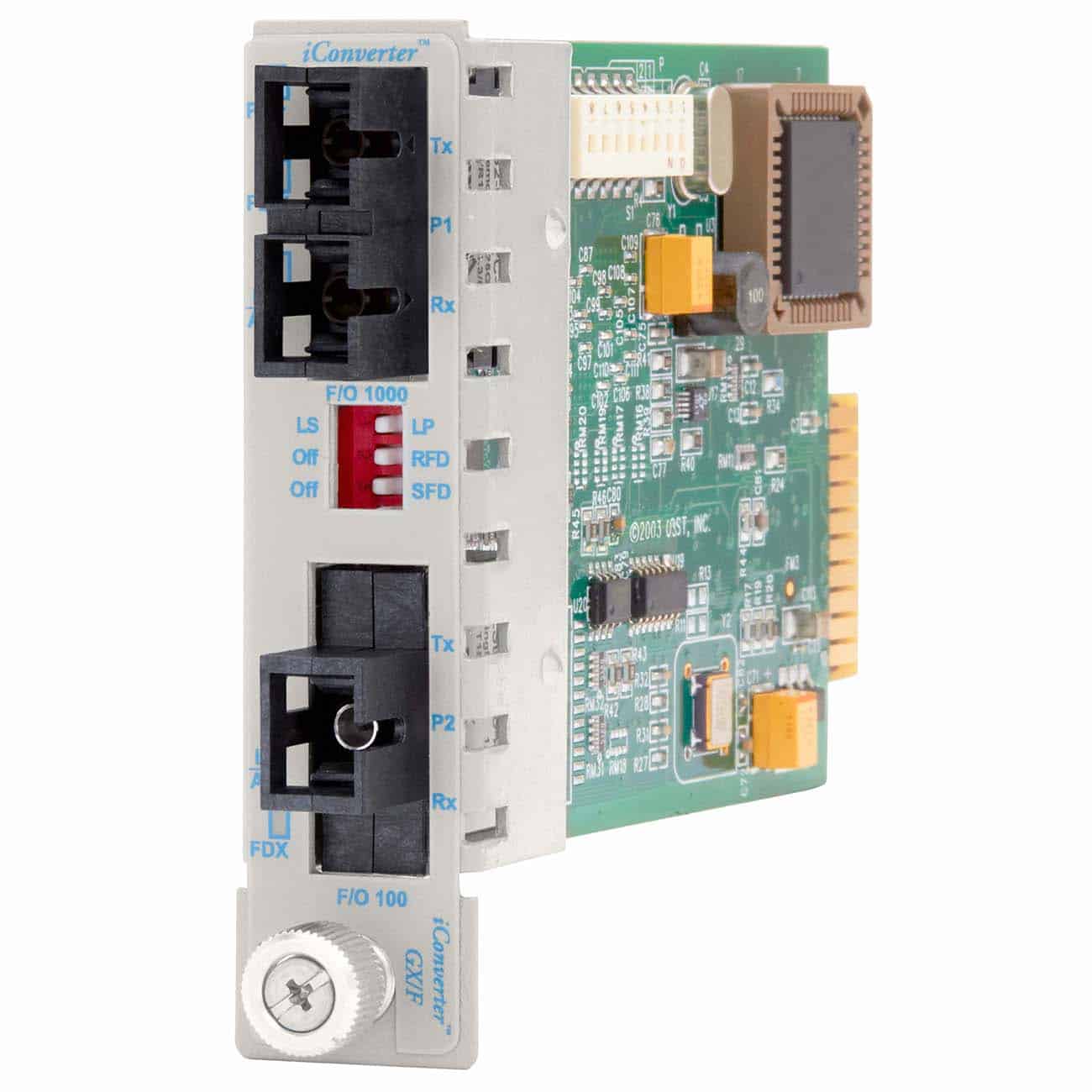

iConverter® GX/F: 1 Gbps to 100 Mbps, SC, Multimode Dual Fiber / Single-Mode Single Fiber, 850nm to 1550nm/1310nm, 220m/40km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Specifications

Description	iConverter GX/F Gigabit to Fast Ethernet Converter/Transponder
Standard Compliances	IEEE 802.3, 802.1Q, 802.1p, 802.1ad RFC 2819 (RMON)
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA,BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 1,536 bytes
Port Types	Fiber:	100BASE-FX (SC) 100BASE-LX (SC, LC) 100BASE-ZX (SC, LC) 100BASE-BX (SC) 1000BASE-SX (SC) 1000BASE-LX (SC, LC) 1000BASE-ZX (SC, LC) 1000BASE-BX (SC)
Cable Types	Fiber:	Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
DC Power Requirements	DC Input: (Backplane)	3.3VDC, 1.5A @ 3.3VDC
Dimensions W x D x H	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight	8 oz. (226.8 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	730,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

iConverter GX/F (Data Sheet)

iConverter GX/F (User Manual)
