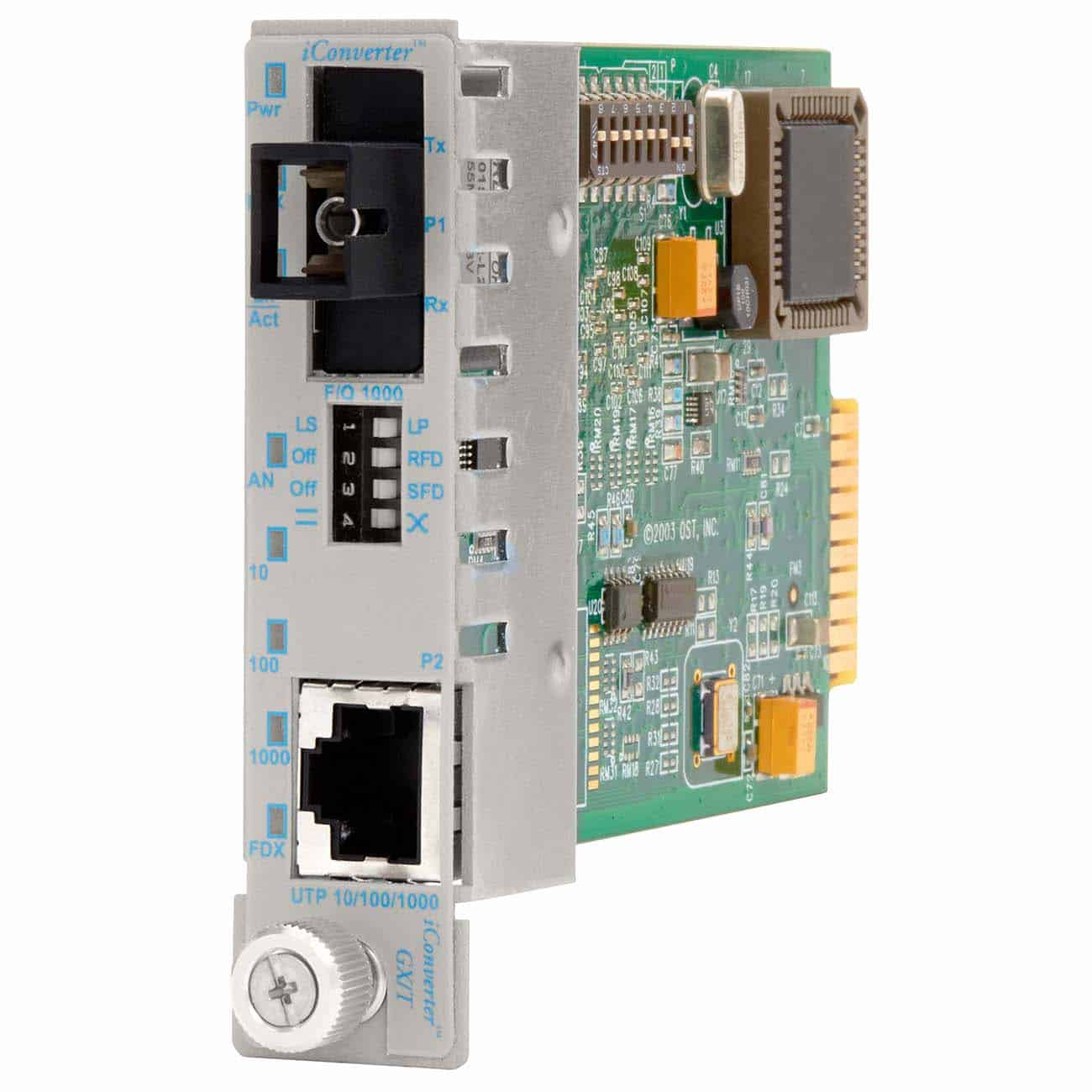

Iconverter GX T SCSF PI
Lifetime Warranty

10/100/1000BASE-T to 1000BASE-X Managed Ethernet Media Converter

iConverter® GX/T

Part Number: 8531-2W



Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® GX/T: 10/100/1Gbps RJ-45 to 1 Gbps, SC, Single-Mode Single Fiber, 1550nm/1310nm, 40km, Powered by Chassis, Wide Temperature -40 to 60 deg C

Specifications

Description
 iConverter GX/T

10/100/1000BASE-T to 1000BASE-X Fiber Media Converter
Standard
Compliances
IEEE 802.3, 802.1Q, 802.1p, 802.1ad

RFC 2819 (RMON)
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2 (6/6), WEEE, REACH
Frame Size
Up to 1,536 bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

1000BASE-SX (ST, SC, LC)
1000BASE-LX (SC, LC)
1000BASE-ZX (SC,)
1000BASE-BX (SC)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
DC Power
Requirements
DC Input:
(Backplane):
3.3VDC, 1.4A @ 3.3VDC
Dimensions
W: 0.85” x D: 4.5” x H: 2.8”
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm
Weight
8 oz.; 226.8 grams
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
830,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

iConverter GX/T (Data Sheet)

iConverter GX/T (User Manual)
