Iconverter GX X 2XSCSF PI
Lifetime Warranty

Gigabit Fiber to Fiber Managed Converter / Transponder

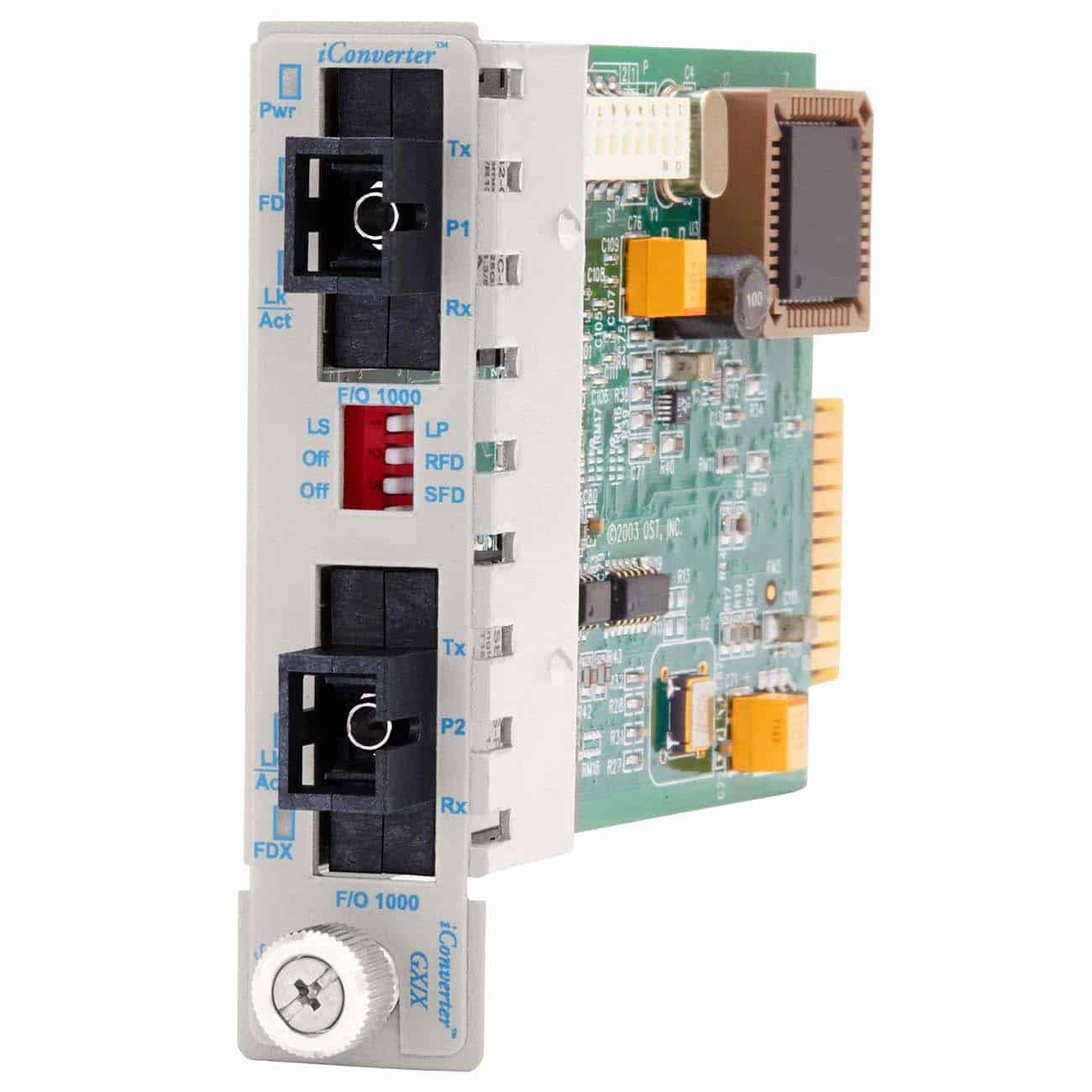

iConverter® GX/X

Part Number: 8557-22



Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® GX/X: 1 Gbps to 1 Gbps, SC, Single-Mode Single Fiber / Single-Mode Single Fiber, 1550nm/1310nm to 1550nm/1310nm, 40km/40km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Description
iConverter GX/X
Gigabit Ethernet Converter/Transponder
Standard Compliances
 IEEE 802.3, 802.1Q, 802.1p, 802.1ad
RFC 2819 (RMON)
Regulatory Compliances
Safety:
EMI:
ACT:
UL, cUL, CE, UKCA
FCC Class A
TAA,BAA, NDAA
Environmental
RoHS, WEEE, REACH
Frame Size Up to 1,536 bytes
Port Types
Fiber:
1000BASE-SX (SC)
1000BASE-LX (SC, LC)
1000BASE-ZX (SC, LC)
1000BASE-BX (SC)
Cable Types
 Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
DC Power Requirements
 DC Input:
(Backplane)
3.3VDC, 2.2A @ 3.3VDC
Dimensions
W x D x H		 0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight
 8 oz. (226.8 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
640,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

iConverter GX/X (Data Sheet)

iConverter GX/X (User Manual)
