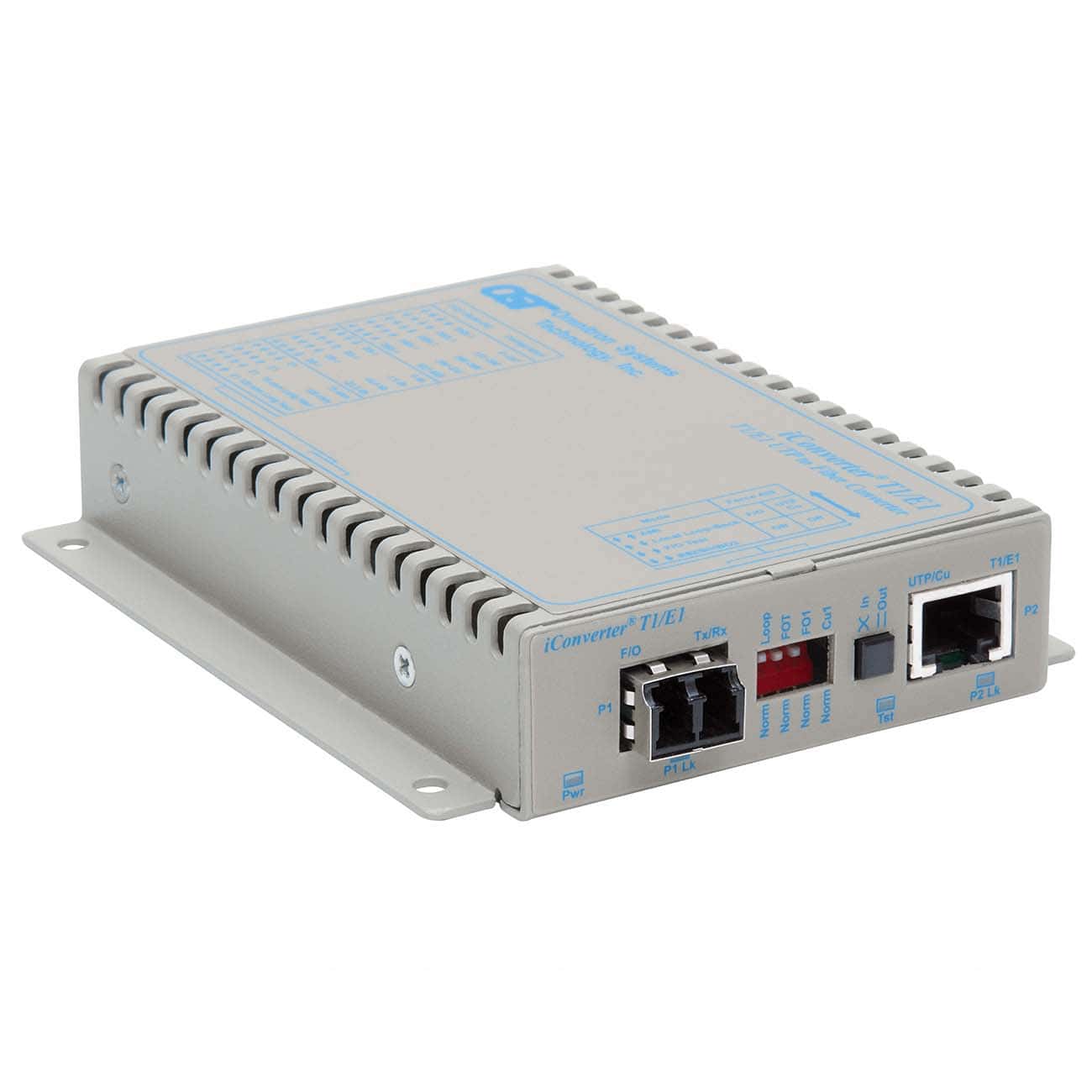

iConverter® T1/E1: T1/E1 RJ-45 to Fiber, LC, Single-Mode Dual Fiber, 1550nm, 120km, No AC/DC Power Adapter, Wide Temperature -40 to 60 deg C

Specifications

Specifications

Description	iConverter T1/E1 T1/E1 Managed Media Converter
Data Rates	T1 or ISDN PRI: E1:	1.544Mbps 2.048Mbps
Standard Compliances	ANSI: T1.403, T1.102 AT&T: T62411 ITU: G.703, G.704, G.706, G.736, G.755, G.823 ETSI: ETS 300 166
Regulatory Compliances	Safety: EMI: ACT:	UL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Type	Copper: Fiber:	T1/E1 (RJ-45/RJ-48) Dual fiber ST, SC, LC and SFP Single-fiber SC and SFP
Cable Types	Copper: Fiber:	Category 3 or better (T1: 100 Ohm, E1: 120 Ohm) (Active Pairs are Pins 1, 2 and 4, 5) Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter: (US) AC Adapter: (Universal)	100 - 240VAC/50 - 60Hz 0.05A @ 120VAC 100 - 240VAC/50 - 60Hz 0.05A @ 120VAC
DC Power Requirements	DC Input: (Backplane) DC Input: (Terminal Block) DC Input: (AC Adapter)	3.3VDC, 0.7A @ 3.3VDC 5 - 32VDC, 0.3A @ 9VDC 2-Pin Terminal (non-isolated) 5 - 32VDC, 0.3A @ 9VDC 2.5mm Barrel Connector
Dimensions W x D x H	Plugin: Standalone:	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight	Plug-in: Standalone w/o Adapter: Standalone w Adapter:	8 oz. (226.8 grams) 1.0 lb. (453.6 grams) 1.5 lbs. (680.4 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Plugin: Standalone w/o Adapter: w/ US Adapter: w/ Universal Adapter:	580,000 590,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
