Managed 10G Ethernet to Fiber Media Converter | Omniton Systems

| |

Description
Specifications
Documents

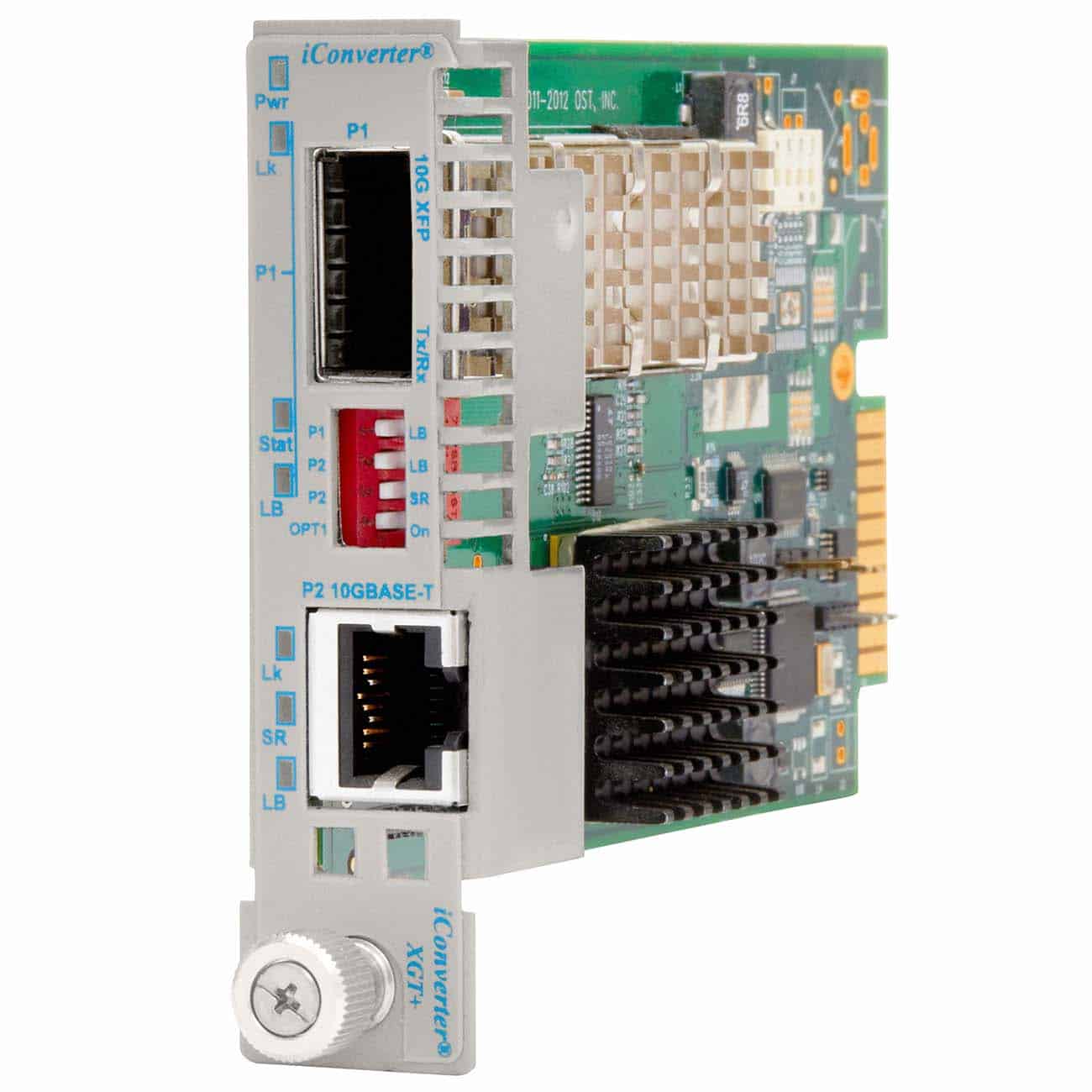

iConverter® XGT+: 10 Gbps RJ-45 to 10 Gbps, XFP, Fiber Type depends on XFP, Wavelength depends on XFP, Distance depends on XFP, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Specifications

Description	iConverter XGT+ 10GBASE-T Ethernet Media Converter
Standard Compliances	IEEE 802.3, 802.3an, 802.3az
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, NEBS 3 Compliant, UKCA FCC Class A TAA, BAA NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Unlimited
Port Type	Copper: Fiber:	10GBASE-T (RJ-45) 10GBASE-X Dual and single-fiber SFP+, XFP
Cable Types	Copper: Fiber:	EIA/TIA 568-B.2-10, Cat 6A UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.20A @ 120VAC (max)
DC Power Requirements	DC Input: (Backplane) DC Input: (Terminal) DC Input: (AC Adapter)	3.3VDC, 2.8A @ 3.3VDC 10 - 60VDC, 1.3A @ 12VDC max 2-Pin Terminal (non-isolated) 10 - 60VDC, 1.3A @ 12VDC max 2.5mm Barrel Connector
Dimensions (W x D x H)	Plugin: Standalone:	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm) 3.8” x 4.8” x 1.8” (96.5 mm x 121.9 mm x 45.7 mm)
Weight	Plug-in: Standalone w/o AC Adapter: w AC Adapter:	8 oz. (226.8 grams) 1.0 lb. (453.6 grams) 1.5 lbs. (680.4 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m
MTBF (hrs)	Plugin: Standalone w/o AC Adapter: w AC Adapter: w/ Uni AC Adapter:	400,000 230,000 70,000 70,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

iConverter XGT+ (Data Sheet)

iConverter XGT+ Plug-in (Quick Start)

iConverter XGT+ Standalone (User Manual)

iConverter XG, XG+ and XGT+ Chassis Installation Guidelines for Airflow and Cooling

iConverter XG, XG+ and XGT+ Product Selection Guidelines
