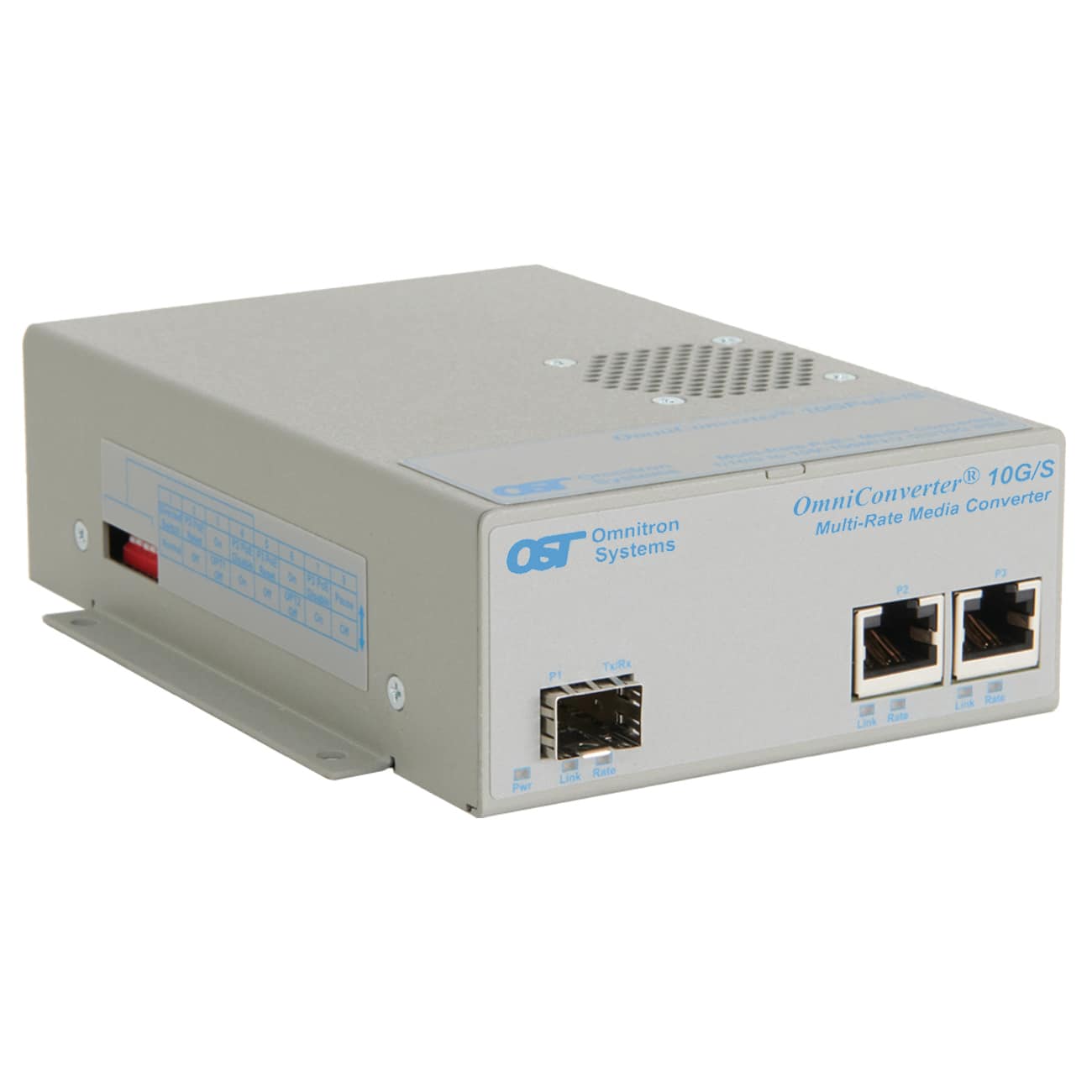

OmniConverter 10G S 1xSFP 2xRJ-45
Lifetime Warranty

Multi-Gigabit/Multi-Rate 10M, 100M, 1G, 2.5G, 5G, 10G Media Converters

OmniConverter® 10G/S

Part Number: 9190-0-12-1W



Add to Quote
icons
  • Description
  • Specifications
  • Documents

OmniConverter® 10G/S: 2 x 10/100/1000/2.5/5/10G RJ-45 to 1 Gbps / 10 Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Wide Temperature -40 to 60 deg C

Specifications

Description OmniConverter 10G/S
Multi-gigabit/multi-rate copper to 1/10G SFP Media Converter
Standard Compliances IEEE 802.3, 802.3bz
Regulatory Compliances

Safety: UL 62368-1*,

             UL 60950-1*,

             IEC 62368-1*,

             IEC 60950-1*,

             EN 62368-1*,

             EN 60950-1*,

             CAN/CSA C22.2 No. 62368-1-14*,

             CAN/CSA C22.2 No. 60950-1*,

             CE Mark,

             UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             UKCA

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 3 Vrms,

             IEC 61000-4-8 ( Magnetic Field) 30 A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT:      TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

                    10/100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types

Copper: Twisted-pair cable up to 100 meters

              10BASE-T: 4-pair UTP Cat 3, 4, 5, 5e, 6, 6A

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

              5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:     Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

1 RJ-45 Port

100 - 240VAC/50 - 60Hz; 0.1A @ 120VAC (typical)

2.5 mm Barrel Connector

2 RJ-45 Ports

100 - 240VAC/50 - 60Hz; 0.14A @ 120VAC (typical)

2.5 mm Barrel Connector
DC Power Requirements
(Models with DC Terminals)

1 RJ-45 Port

+12 to +57VDC; 0.19A @ 56VDC

2 Pin Terminal

2 RJ-45 Ports

+12 to +57VDC; 0.25A @ 56VDC

2 Pin Terminal
Dimensions
W x D x H		 4.8” x 6.0” x 1.75” (121.92 mm x 152.4 mm x 44.45 mm)
Weight Module Only:           1.1 lbs. (498.9 grams)
Module w/ Adapter: 1.6 lbs. (725.7 grams)
Operating Temperature Commercial: 0 to 50°C
Wide:         -40 to 60°C (-20°C AC cold start)
Storage:     -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module Only: 271,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with registration and 24/7/365 free Technical Support
* Pending
