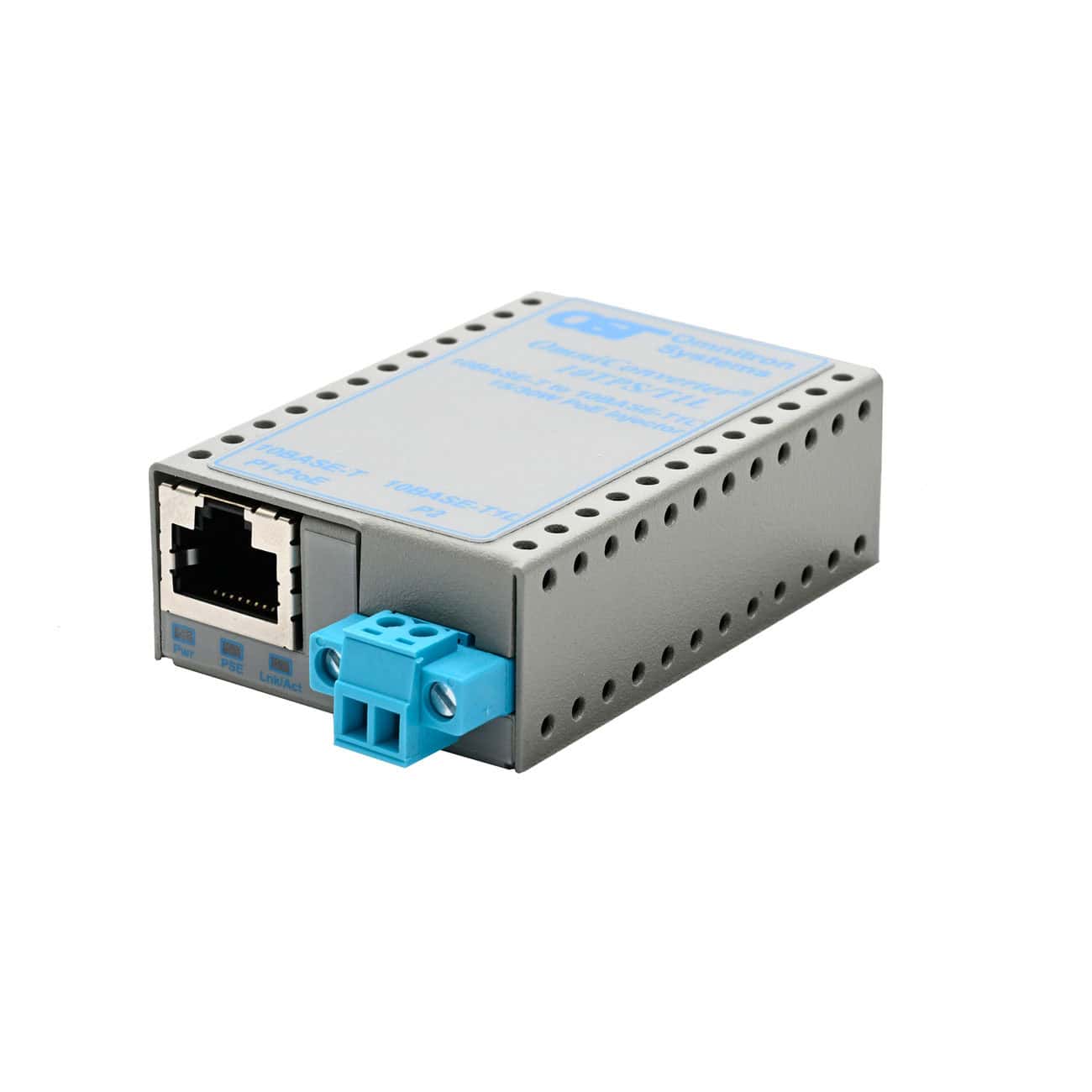

OmniConverter-10TT1L PSE Terminal AC Standalone
Lifetime Warranty

Single Pair Ethernet (SPE) Media Converter - 10BASE-T to 10BASE-T1L

OmniConverter® 10T/T1L

Part Number: 2010-000-A



Add to Quote
icons
  • Description
  • Specifications
  • Documents

10BASE-T RJ-45 port + 1 x 10BASE-T1L 2-Pin Terminal port; Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power cord, without integrated mounting brackets; Commercial Temp (0 to 50 deg C)

Specifications

STANDARDS AND COMPLIANCES

Regulatory Compliances (Pending)
Safety:

UL 62368-1, UL 60950-1,

IEC 62368-1, IEC 60950-1,

CAN/CSA C22.2 No. 60950-1,

EN 60950-1:2006

CE Mark,

UKCA
EMI:

FCC 47CFR, Part 15 Class A

AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

ICES-003 Issue 3

EN 55032/CISPR 22 and EN55035

EN61000-3-2

VCCI V3/2001.04 (CISPR 22A:1997, Class A)
EMC:

IEC/EN61000-4-2, IEC/EN61000-4-3

IEC/EN61000-4-4, IEC/EN61000-4-5

IEC/EN61000-4-6, IEC/EN61000-4-8

IEC/EN61000-4-11
ACT: TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH





SPECIFICATIONS

Description

OmniConverter 10T/T1L

10BASE-T RJ-45 to 10BASE-T1L 2-Pin Terminal

OmniConverter 10TPS/T1L

10BASE-T PoE+ RJ-45 to 10BASE-T1L 2-Pin Terminal
Standard Compliances

IEEE 802.3, IEEE 802.3cg
Frame Size Up to 1518 bytes
Port Types

10BASE-T: RJ-45

10BASE-T1L: 2-Pin Terminal or IEC 63171-2 SPE connector
Cable Types Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

              Single-Pair Ethernet (SPE) cable
AC Power Requirements

100 - 240VAC/50 - 60Hz, 0.6A @ 120VAC

2.1mm Barrel

100 - 240VAC/50 - 60Hz, 1.5A @ 120VAC

2.1mm Barrel
DC Power Requirements

+9 to +24VDC; 0.034A @ 12VDC

2 Pin Terminal (isolated)

+44 to +57VDC; 0.56A @ 56VDC

2 Pin Terminal (isolated)

Dimensions

W x D x H

w/o Bracket: 1.75” x 2.50” x 0.84” (44.5 mm x 63.5 mm x 21.3 mm)

w/ Bracket:   2.10” x 2.50” x 0.84” (53.3 mm x 63.5 mm x 21.3 mm)
Weight

Module Only: 2.5 oz. (70.9 grams)

w/ AC/DC Adapter: 12 oz. (340.2 grams)

Module Only: 2.5 oz. (70.9 grams)

w/ AC/DC Adapter: 12 oz. (340.2 grams)
Operating Temperature
(See Temperature Derating Table)

Commercial: 0 to 50°C

Wide: -40 to 60°C

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs)

Module Only: 2,481,000

AC/DC Adapter: 100,000

Module Only: 2,160,000

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support



OmniConverter Single-Pair Ethernet (User Manual)

OmniConverter Single-Pair Ethernet (Data Sheet)

SPoE Cable Distance (Application Note)
